3D Laser DOV-360GS

SOUTHGEOSYSTEMS
DOV360GS-A40099
ex Shipping kg
Add to cart
  • Description
  • More
  • Specifications

SGS 3D Laser DOV-360GS, green, self-leveling laser. Projects 3 laser planes at 360°: a horizontal plane and two vertical planes at 90 ° to each other

SOUTHGEOSYSTEMS | KOLIDA

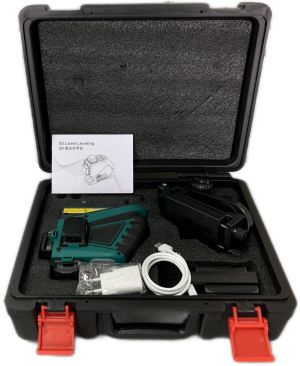

Green, self-leveling laser. Projects 3 laser planes at 360°: a horizontal plane and two vertical planes at 90 ° to each other Plumb line always visible with 4 squares at the walls 2 crosses, one at the ceiling and on the ground external to the base of the structure for always visible plumb Optical glasses High visibility Easy ceiling positioning (< 2 cm) Indoor and outdoor use. Automatic laser flashing and audible warning if the device is outside the self-leveling range Integrated locking system to prevent vibration during transport, possibility of projecting laser also with a fixed inclined position Compact, non-slip rubber bumper Li-ion rechargeable battery plus a spare battery and external charger Optional: sliding base with the possibility of small gliding movements in all directions for fast positioning

Laser Level 3D SGS

Laser diode :638nm 120mw
Li-battery :Panasonic
3.7V3400mAh
Working range:30m
Leveling accuracy :±0.2mm/m
Laser Class : 2
Self-leveling range : ±4°
Leveling-duration : <4s
Dimension :159*59*141 mm

3D-Laser-EN
  • TECHNICAL DATA

    Capacity

    30 m

    Working range with receiver

    50 m

    Leveling accuracy

    ±2 mm / 10 m

    Self-leveling range

    ± 4°

    Signal out self-leveling

    yes

    Laser type

    520 nm <1mw

    Laser power

    Class II

    Batteries

    Li-ion 7.4V  2600 mAh

    Dimensions

    140 x 160 x 85 mm

    Weight (without batteries)

    0,65 Kg

    Dust/Waterproofing

    IP 54

    Tripod thread

    1/4"- 5/8"
