Forestry Compass DQL16Z
SOUTHGEOSYSTEMS
DQL16Z-A300288
ex Shipping kg
Add to cart
  • Description
  • More
  • Specifications

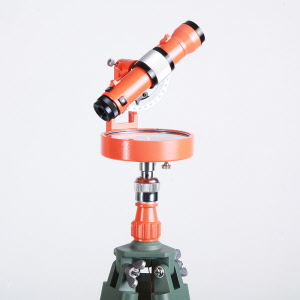

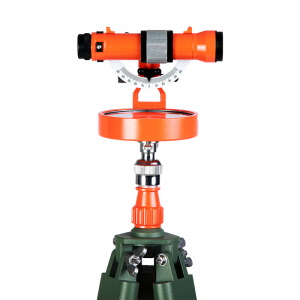

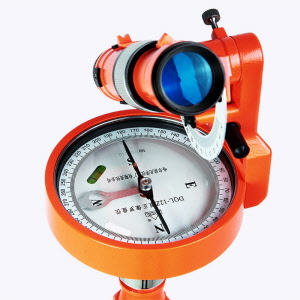

Compass DQL16Z SOUTHGEOSYSTEMS Mainly used for magnetic orientation, measurement of distance, level, altitude difference gradient and etc. Tripod included

SOUTHGEOSYSTEMS BRUNTON TYPE COMPASS

Compass DQL16Z SOUTHGEOSYSTEMS Mainly used for magnetic orientation, measurement of distance, level, altitude difference gradient and etc. Tripod included

*Magnification: 16x *Image: Erect*Stadia multiplication constant: 100
*Horizonal vernier scale: 5
*The division unit of dial:1°
*Weight:0.8kgs
*Size:130x110x230(mm)



DQL16Z-EN

Optical Compass

DQL16Z

Magnification

16x

Aperture

14mm

Field of View

1º30'

Resolution Power

15"

Multiplication Constant

100

Additive Constant

0.18

Shortest Focusing Distance

2m

Max. Height

±50º

Bubble Accuracy

30'/2mm

Min. Graduation

1º
