Echo-Sounder SDE 28s+
KOLIDA
SDE28s-A2503220
ex Shipping kg
  • Description
  • More
  • Specifications

Single Frequency Digital Echo Sounder The South SDE-28S echo sounder is an industrial control and digital echo sounder with an integrated 12.1-inch TFT-LCD screen.

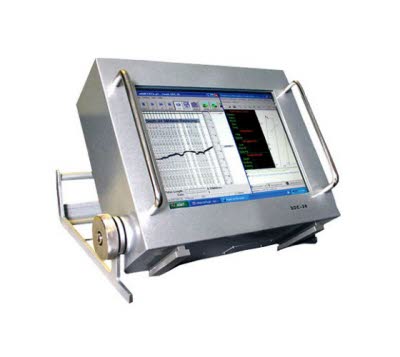

Echo-Sounder Kolida SDE 28S, The KOLIDA SDE-28S precision hydrographic echsounder is simply a new category on its own. Surveying on water sites, at any depth is simple and professional with the superb Powernav software that lets you design on site the projected survey, as well as import features straight from your CAD software, and accepts single or double gps setup on the boat, for navigation, SBAS or RTK units. Windows XP embedded platform, 12" color LCD touchscreen display, wide array of I/O ports, configurable for various GPS and sounder interphases, and heat and splash proof stainless steel body are features that add extreme functionality to its well designed configuration. The mainframe can be connected to heave, pitch and compass sensors, output to printer, receive any NMEA-0183 GPS and run your own Windows software on it. The included PoweNav software incorporates a simple graphical data review tool and exports directly as data or DXF for easier project workflow.
VIDEO Echo Sounder SDE-28s Installation and Operation



KOLIDA SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterproof, shockproof. It collects depth measurement, graphical navigation, positioning data, water depth data acquisition together. All these features make the instrument strong compatibility, stable performance and reliable accuracy.



Onboard Software

SDE-28S+ (for depth measurements)

·Real-time vivid display of graphic and data, easy approach to underwater waves

·Integrated sound velocity calculation for more accurate results

·Smart alarm for shallow water and  "No echo" tracking to secure hydrographic operations

·Real-time display of the water depth value tracking lines, easy to be compared with underwater waves


Auto change of depth range                                                          Real-time display



PowerNav (for navigation purpose)



·New software kernel, faster processing and more stable

·Professional Engineering map sheet and data management, wizard-style parameter setting

·High compatibility, flexible to import graphs and data, connectible to all GPS devices and echo sounders

·Modular designed, meets diverse needs of hydrographic engineering projects

SDE28D
  • Max. power consumption [W]
    400
  • Min. external DC power [V]
    9
  • Max. external DC power [V]
    18
  • Min. external AC power [V]
    110
  • Max. external AC power [V]
    260
  • Weight in air [kg]
    7.5
  • Width [m]
    0.14
  • Length [m]
    0.35
  • Height [m]
    0.29
  • Software platform
    Windows XP
  • Min. depth of operation [m]
    0.3
  • Max. depth of operation [m]
    2000
  • Min. frequency [kHz]
    20
  • Max. frequency [kHz]
    200
  • Min. power output [W]
    300
  • Max. power output [W]
    800
  • Min. beam angle [deg]
    7
  • Max. beam angle [deg]
    7
  • Depth resolution [m]
    0.01
  • Max. sounding rate [Hz]
    30
  • Real-time sound velocity and temperature profile inclusion
    Y
