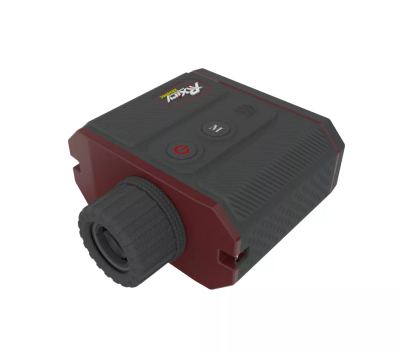

Laser Range Finder XR3000C
SOUTHGEOSYSTEMS
XR3000C-A2501100
ex Shipping kg
  • Description
  • More
  • Specifications

Laser Range Finder XR3000C

Laser Range Finder XR3000C

Brand: RxiryMeasurement accuracy: ±0.1m（＜400m） ±0.3m（400m-1000m） ±1m（1000m-3000m）Measuring range: non-reflective targets 0-3000m
Reflective Targets 0-3500m
Scope of application: communications telecommunications surveying and mapping golf industries
Model: XR3000C
Specification: 126mm*114mm*54mm
RX3000C

Measurement range

Range：non-reflective targets 0-3000m

  Reflective Targets 0-3500m

Accuracy

±0.1m（＜400m）

±0.3m（400m-1000m）

±1m（1000m-3000m）

Inclination （INC）

Range：±90° Accuracy：±0.1°

Azimuth（AZ）

Range：±360° Accuracy：±0.5°









Measurement mode

VD ML

HD ML

HT

HD HT

HD/SD

VD

SD ML

AZ

SPD

Eccentricity measurement

YES

Magnification

8X

Resolution

0.01m

Temperature

YES

GPS

YES

Bluetooth

YES

Diameter of eyepiece

30mm

Laser detector aperture

30 mm

Laser emission aperture

26 mm

Field of View

8°

Exit pupil

4.0 mm

Exit pupil distance

16 mm

Protection lever

IP65

Laser wavelength

905nm

Laser safety lever

CLASS1

Optical material

BAK7

Display

LCD

Operation mode

Hand hold

Measurement unit

Meter， Yard， Degree

Tripod

Mounting hole ¼”~20 for Standard tripod

Battery

1节 18650-3.7V

Working time

Continuous operation for 16 hours

Accessory

Rxiry APP

Data transmission

Excel

data transmission methods

Email、Wechat、QQ for options

Size/Weight

126*114*54mm/400g

Data storage

Yes( Keep at least 100 sets of data）

System setting

Factory default setting

Others

RS232 transmission
